Specifications
| Product Characteristics | |
|---|---|
| Environment | Indoor |
| Light & Electrical | |
|---|---|
| Operating Voltage | 12V |
| Power Source | Hardwired |
DR8UM-L

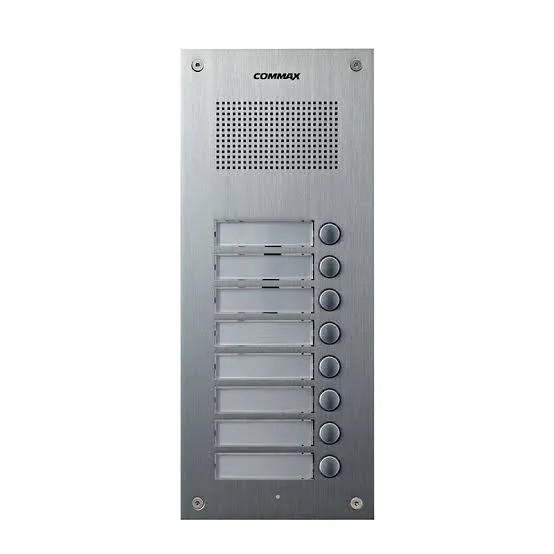

Commax DR-8UM Silver 8-Button Audio Door Station | DR-nUM Series

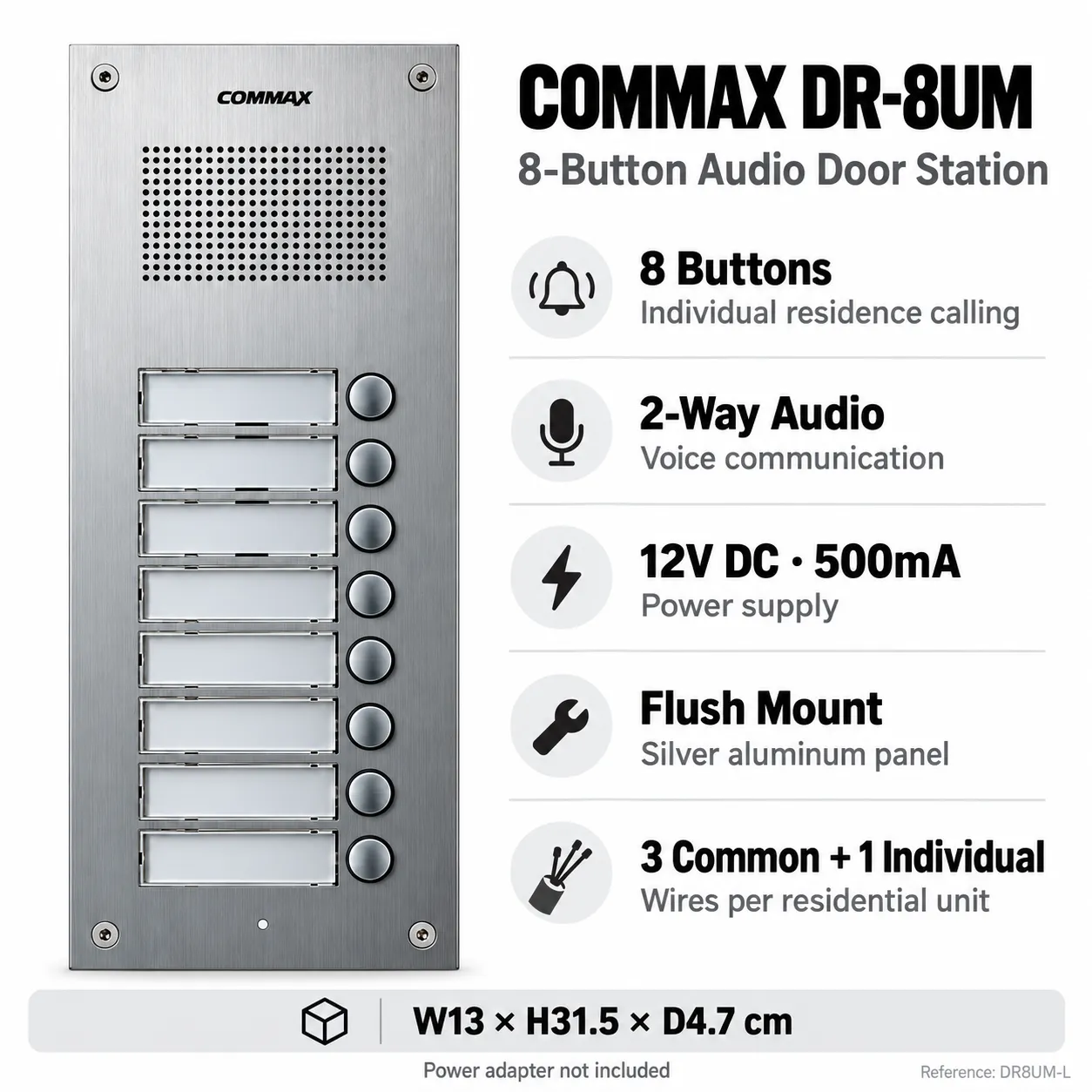

COMMAX Audio Door Station | 8 Call Buttons with Name Cards | Silver Aluminum Panel | Flush Mount | 2-Way Audio | 12V DC, 500mA | W13 × H31.5 × D4.7cm
| Environment: | Indoor |
| Operating Voltage: | 12V |
| Power Source: | Hardwired |
DR8UM-L
The COMMAX DR-8UM audio door station provides individual calling for up to eight residential stations. Its silver aluminum panel combines dedicated call buttons and name-card spaces in a flush-mounted design, allowing visitors to contact the relevant residence and communicate through two-way audio.
- Eight individual call buttons: Dedicated calling and name-card identification for up to eight residences.
- Two-way audio: Voice communication between the entrance panel and compatible indoor stations.
- Compatible indoor stations: DP-SS, DP-KSS, DP-4KS and DP-MR.
- Flush-mounted aluminum panel: Measures W13 × H31.5 × D4.7cm.

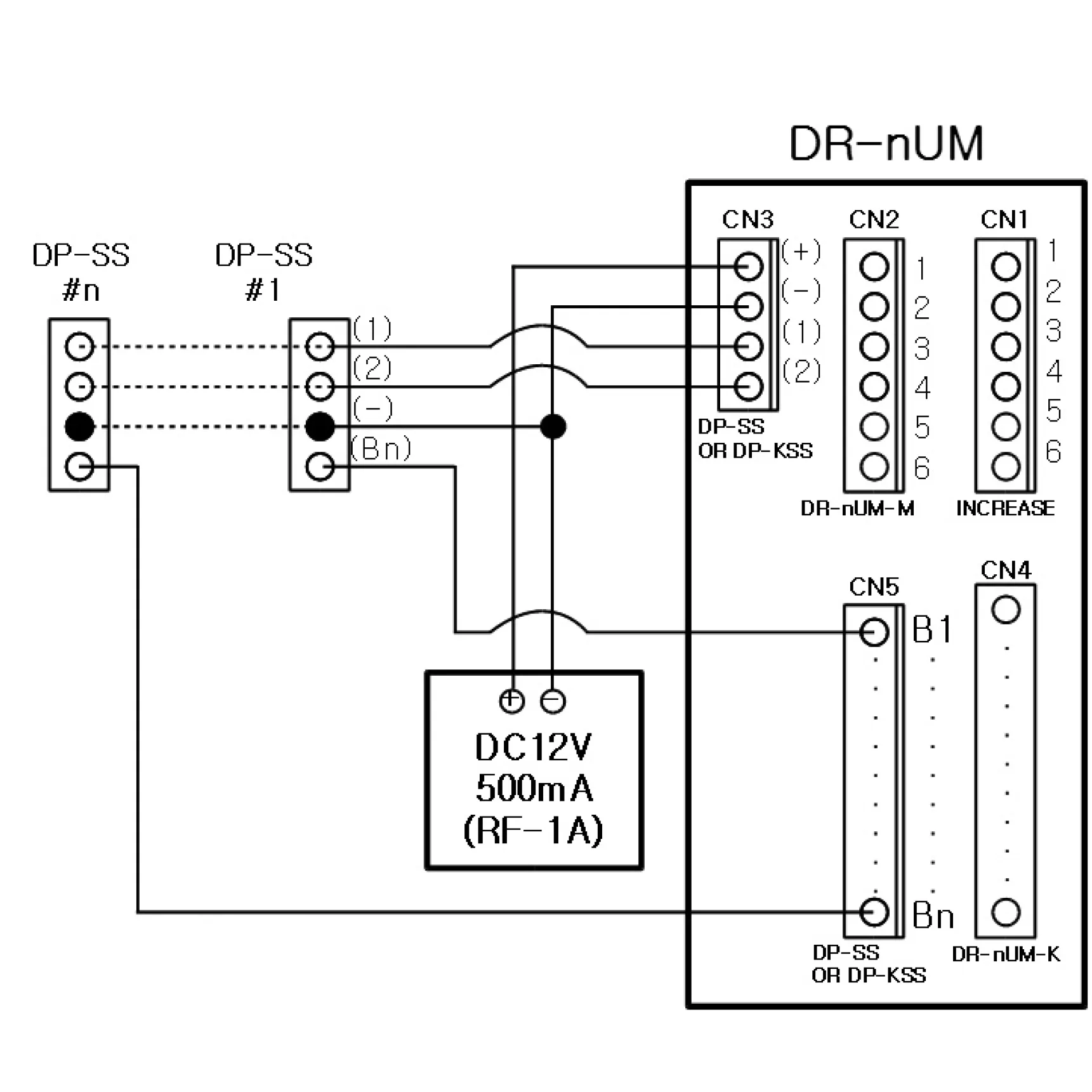

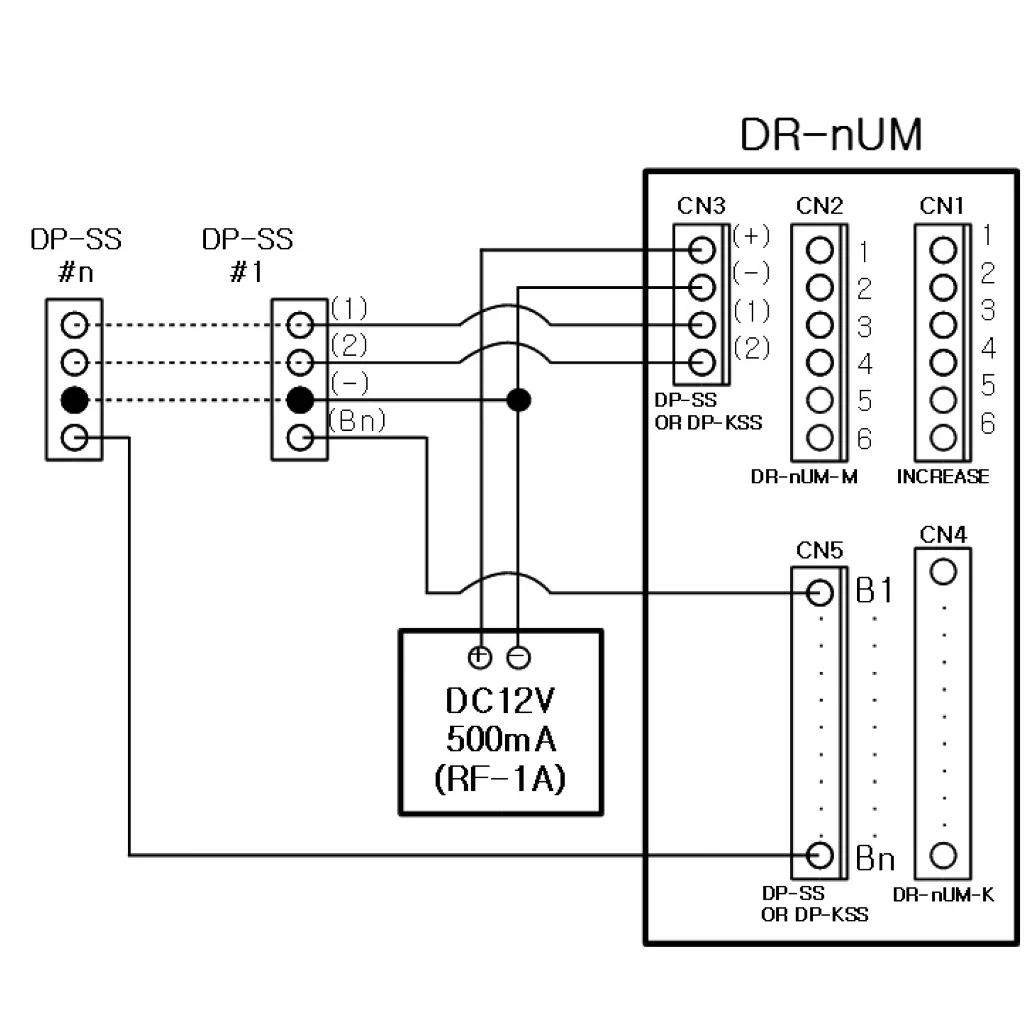

- Power and wiring: Requires 12V DC, 500mA, with three common wires plus one individual wire per unit. Power adapter not included.

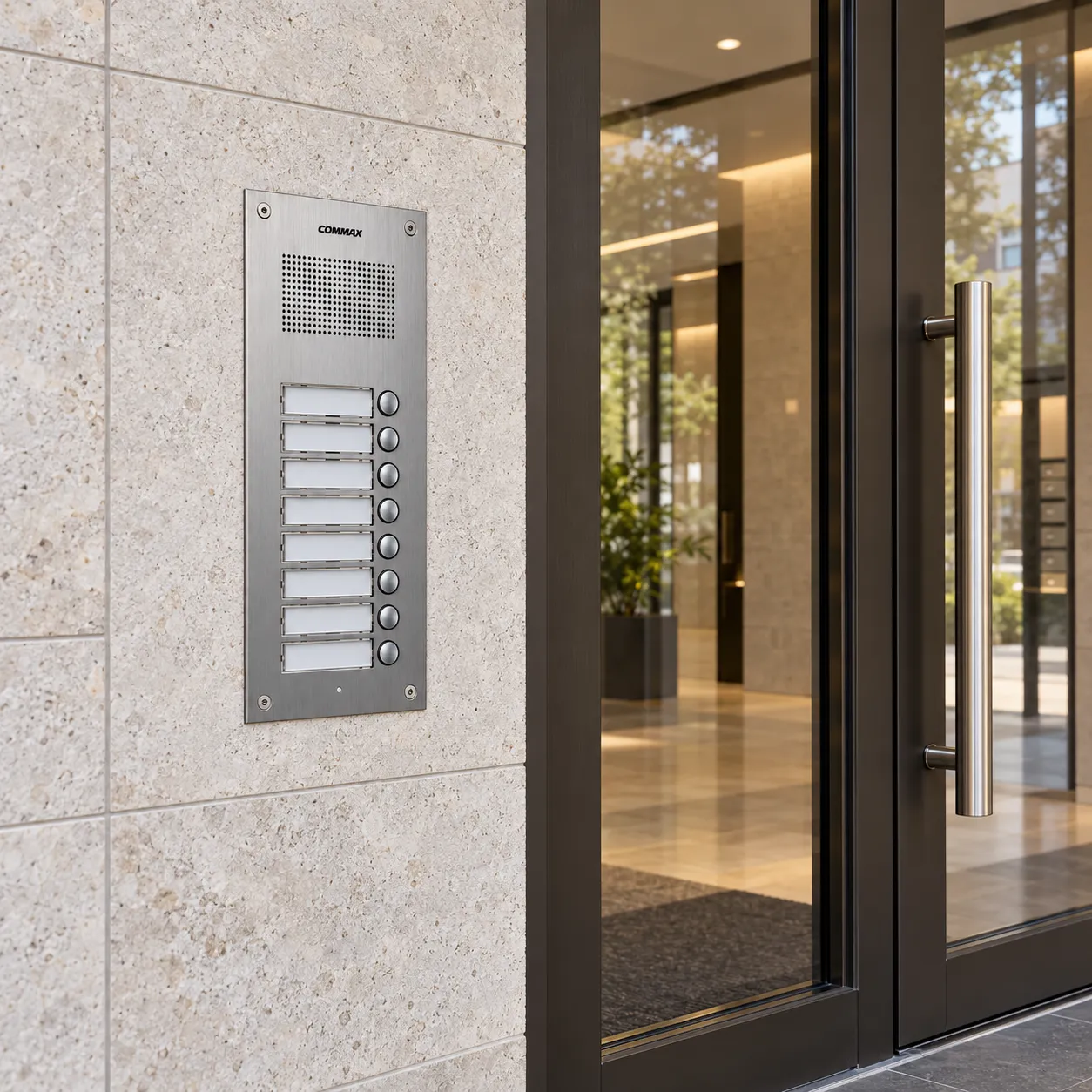

Suitable for shared entrances in apartment buildings and multi-residence properties requiring individual audio calling.
